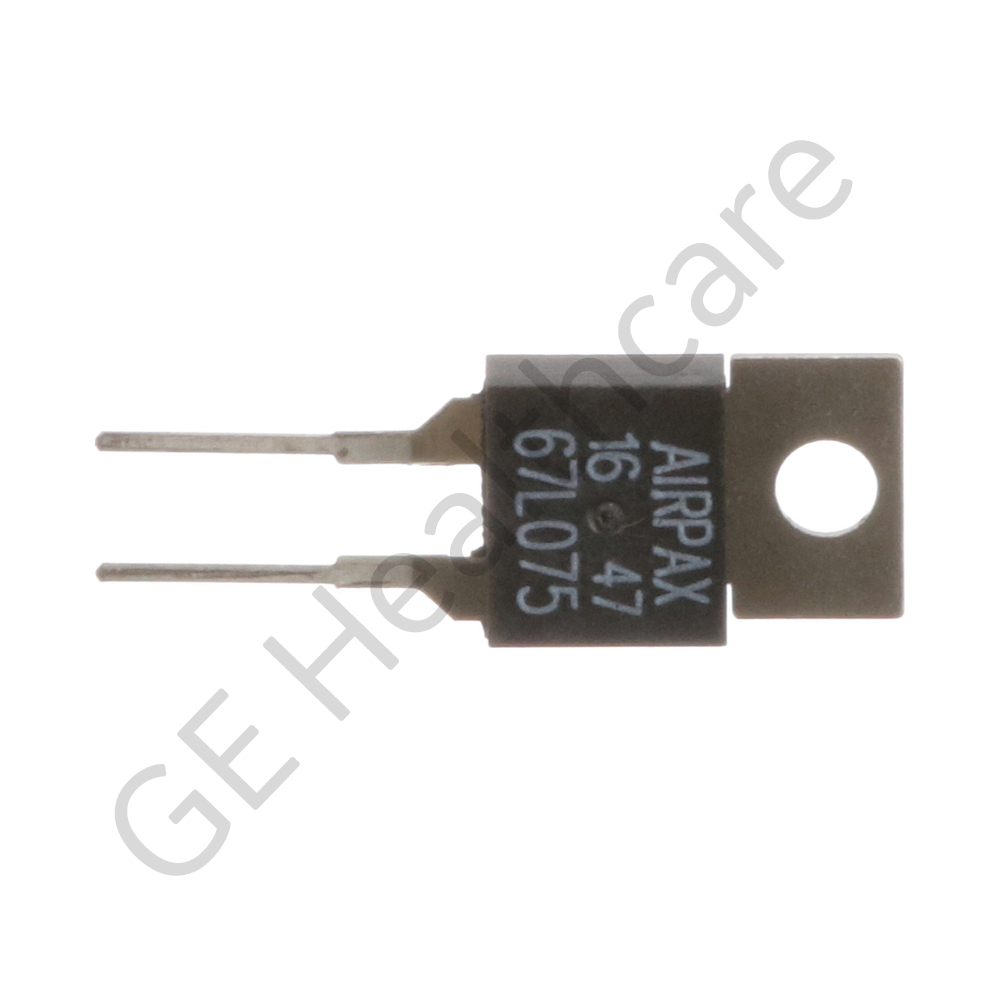

Bi-Metal Thermostat, TO-220, SPST, 75C
LU8247
LNR8247
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • RoHS complaint
  • TO-220 international electronic package standard
  • Ideal for surface and air sensing on PC boards and heat sinks
  • Gold-plated contacts

Product Overview

It's a 2-pin Bi-Metal Thermostat with limit (open on rise) contact operation. This is a single-pole/single-throw sub-miniature bimetallic thermostat which provides accurate and reliable sensing and switching in a single device. This thermostat dimensionally conforms to the international product package standard. Thus, this may be automatically placed and soldered onto PC boards with high speed automated equipment, eliminating the need for the expensive hand placement and termination required today for most power supply thermostats. This thermostat provides fast, positive response with excellent repeatability. The thermostat has a switch capability of up to 0.5A for 48VDC and achieves low-level switching down to 0.001 to 0.020A at 5VDC for 100000 cycles. Temperature is pre-set at the factory and is non-adjustable in the field.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
LNR8247

THERMOSTAT, 75C TO -220
