Motor Reducer Assembly with Brake 5479352
5479352
5370432 5479352-H 5479352-R
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • 700 watts motor
  • Less noise
  • Minimal backlash
  • Commutating encoder

Product Overview

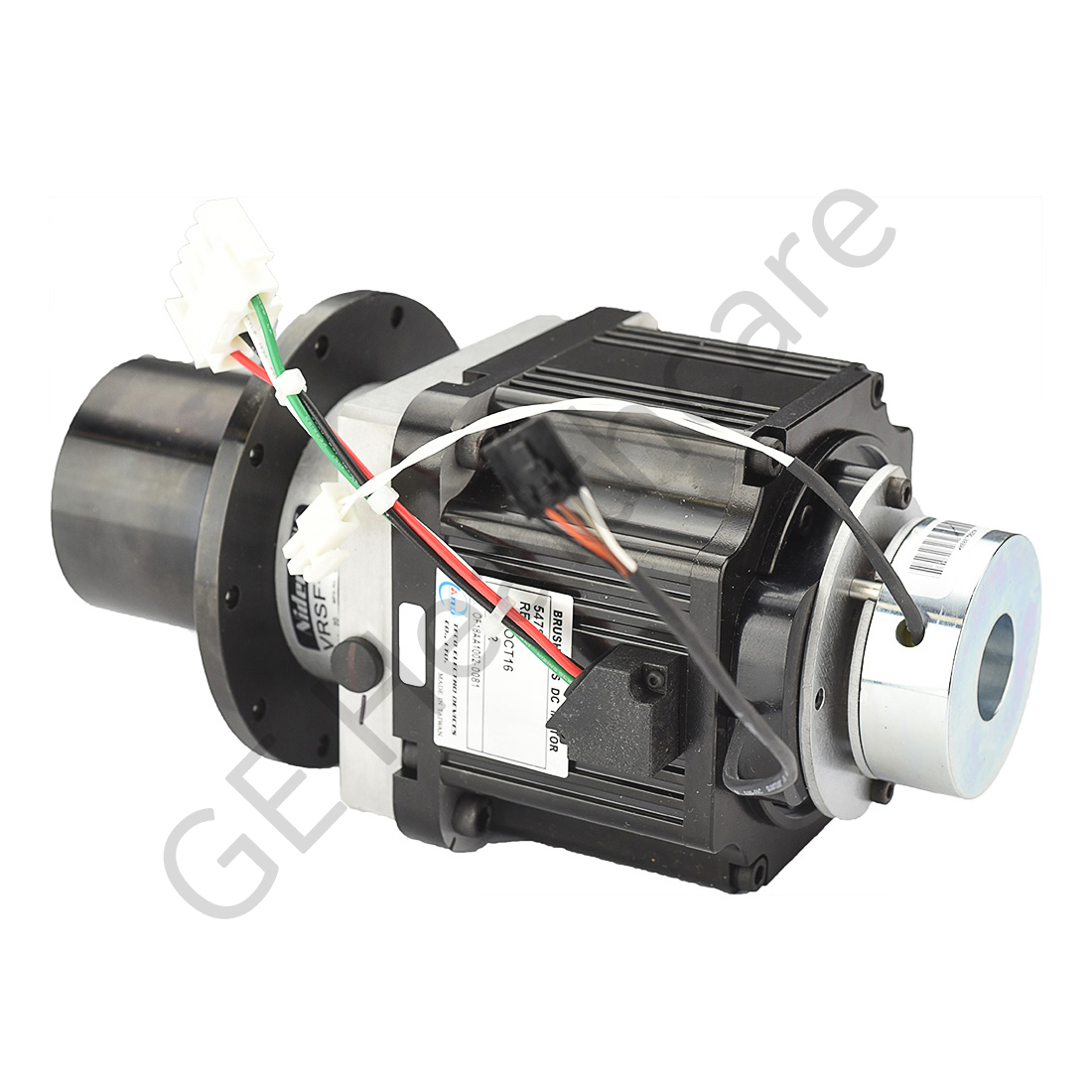

The Motor Reducer Assembly with Brake is a component of the base motor. A 700 watts rated power output is used for the base motor which drives motor reducer assembly. The thermal time constant for the motor is 23 minutes and the thermal resistance is 0.54 C/watt. The motor is wound up in a lightweight aluminum casing. It operates much quite than the standard versions. Provisions are given to accommodate the encoder with the motor. Every 30m, the motor leads in order to relieve the strain at the exit points have been provided. A gear reducer of 20:1 planetary, is part of the kit. It helps us to achieve the desired outputs. Since it is a planetary type there is a low chance for backlash. It is a two stage planetary, output stage has 3 planets. The brake is a power off type. It is suitable for continuous operation at 180 VDC. The encoder is covered by rubber modified glass fiber glass. It provides good heat resistance and UV stability.

Compatible Products

Optima XR220

Optima XR220

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5370432

motor reducer assembly

5479352-H

Motor Reducer Assembly with Brake

5479352-R

Motor Reducer Assembly with Brake
