Trackball Assembly 5393439-2
5393439-2
Ultrasound
Other Ultrasound
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Effective dust seal
  • Chemical resistant
  • USB compatible
  • It operates with good linearity

Product Overview

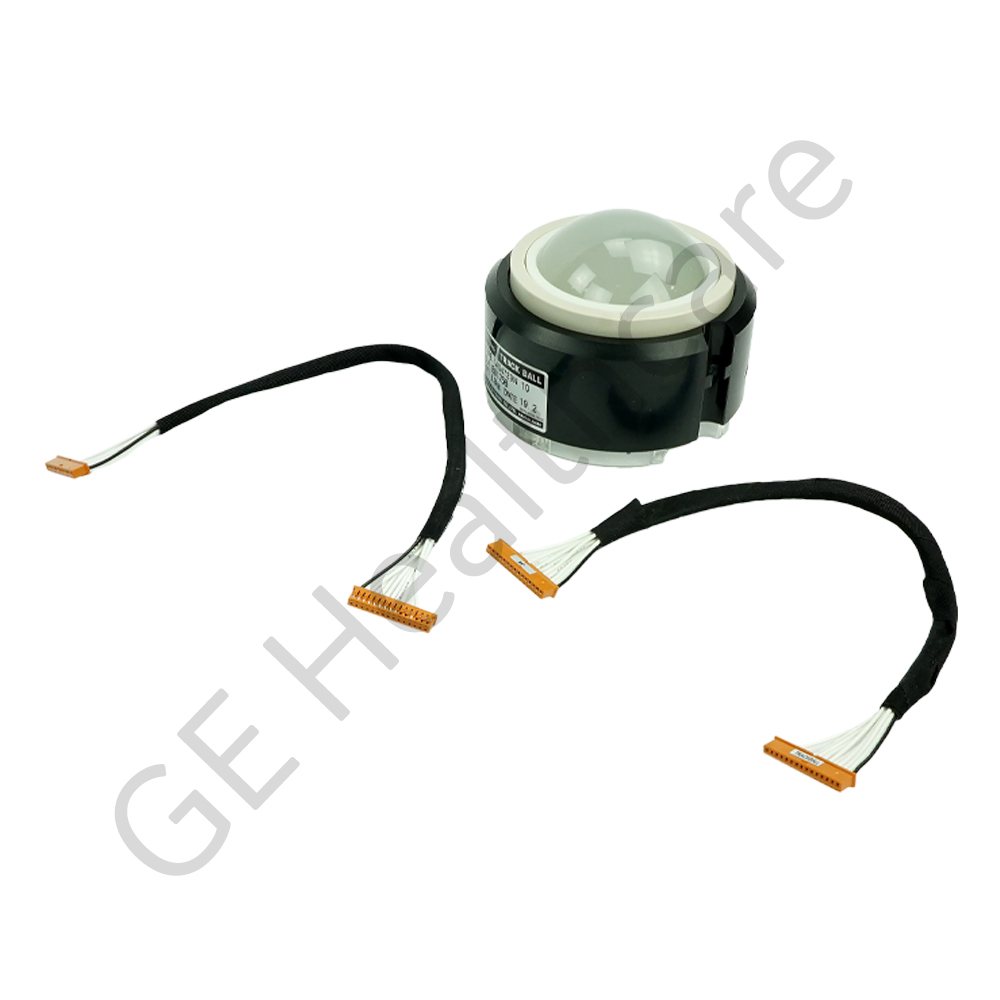

The Trackball Assembly is mainly used in ultrasound and other Digital Imaging (DI) healthcare systems. It is mounted in the operator panel of the machine. It communicates with the host computer over USB through a hub built into the operator panel electronics. Over USB, the trackball position data and the status of the mouse buttons are communicated via a standard Microsoft driver. The trackball assembly is supplied along with a ribbon cable. The cable is necessary, as the trackball replaces a previous design that had an integral cable for connecting to the mouse buttons. Both the trackball and the cable are safely packaged with adequate protection to survive a drop test. The integrated circuit takes continual snapshot of ball surface and how the features in these snapshots move is used to detect ball motion. It comes with a smooth finish without any burrs, sharp edges, surface blemishes, sink marks and flash marks. This product is used specifically in machines such as LOGIQ S7 Pro/S7 Expert, Voluson S6/S8 and other similar systems.

Compatible Products

Voluson S6

Voluson S6

Voluson S8

Voluson S8
