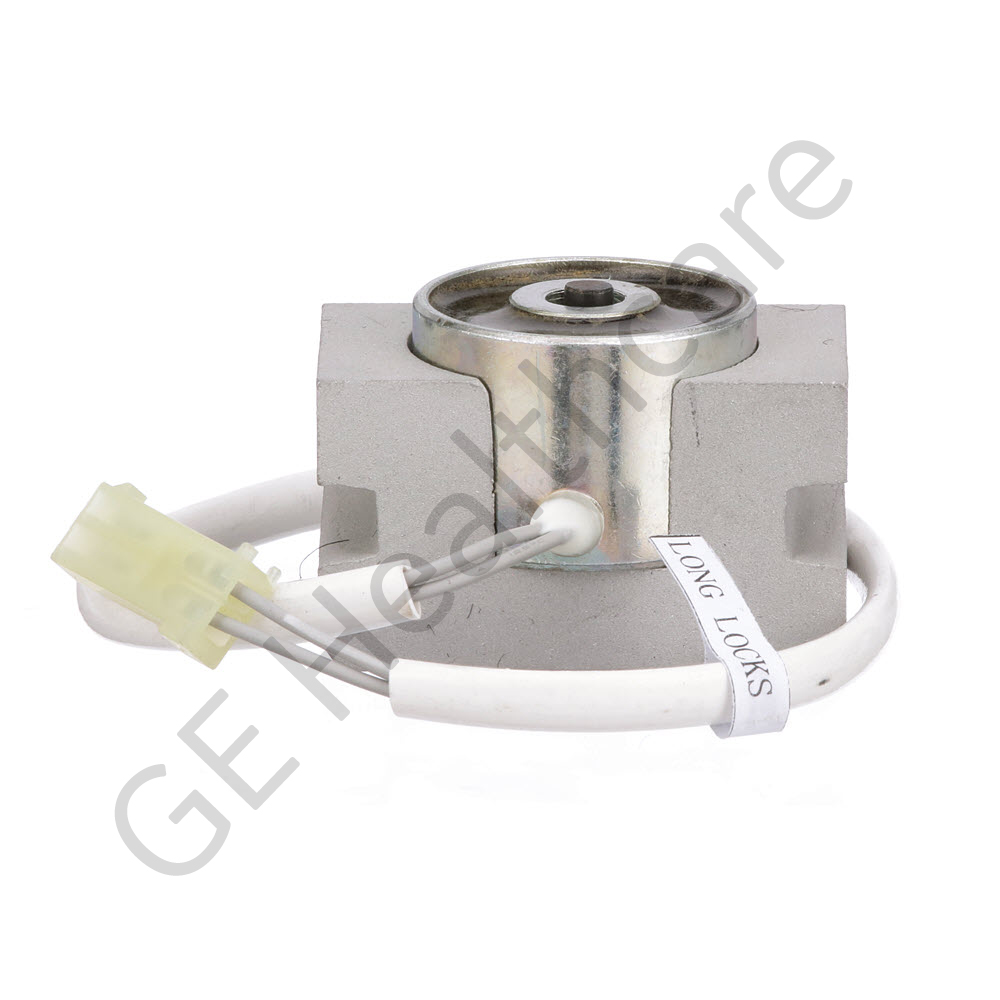

Circular Brake Assembly 5271440

5271440
X-Ray
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High safety protection
  • Made of high-quality material
  • More durability and safety
  • Does not contain any burrs and sharp corners

Product Overview

The Circular Brake Assembly is a specially designed brake intended for use in X-Ray machine and other medical equipment as applicable. The brake assembly comprises of lead wires, connector housing and lock sockets. The part is supplied with brake drive spline. The compressed spring provides the required braking power to the brake assembly. The product is made of high-quality material, which makes it best suited for modern medical applications and demanding applications. The part is tested to work at extreme atmospheric conditions. It is diligently designed for superior performance and reliability. The brake system to selectively lock and release the vertical motion of a C-arm X-Ray device that is part of a sliding counterbalanced C-arm positioning device are described. The brake system can be actuated to engage the linear bearing rail assembly and lock the vertical movement of the linear bearing block. The assembly is compliant to ROHS standards. It does not have any hazardous materials and is environmentally safe. The circular brake assembly contains iron core, coil, insulated washer and pin. These parts together make up the completed assembly.

Compatible Products

Definium 6000

Definium 6000

Discovery XR650

Discovery XR650
