Cable Video Camera 3m 5220205-2

5220205-2
2293664-4 5183842-2
X-Ray
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High quality cable assembly
  • Durable
  • High strength and stiffness
  • Easy to connect and disconnect

Product Overview

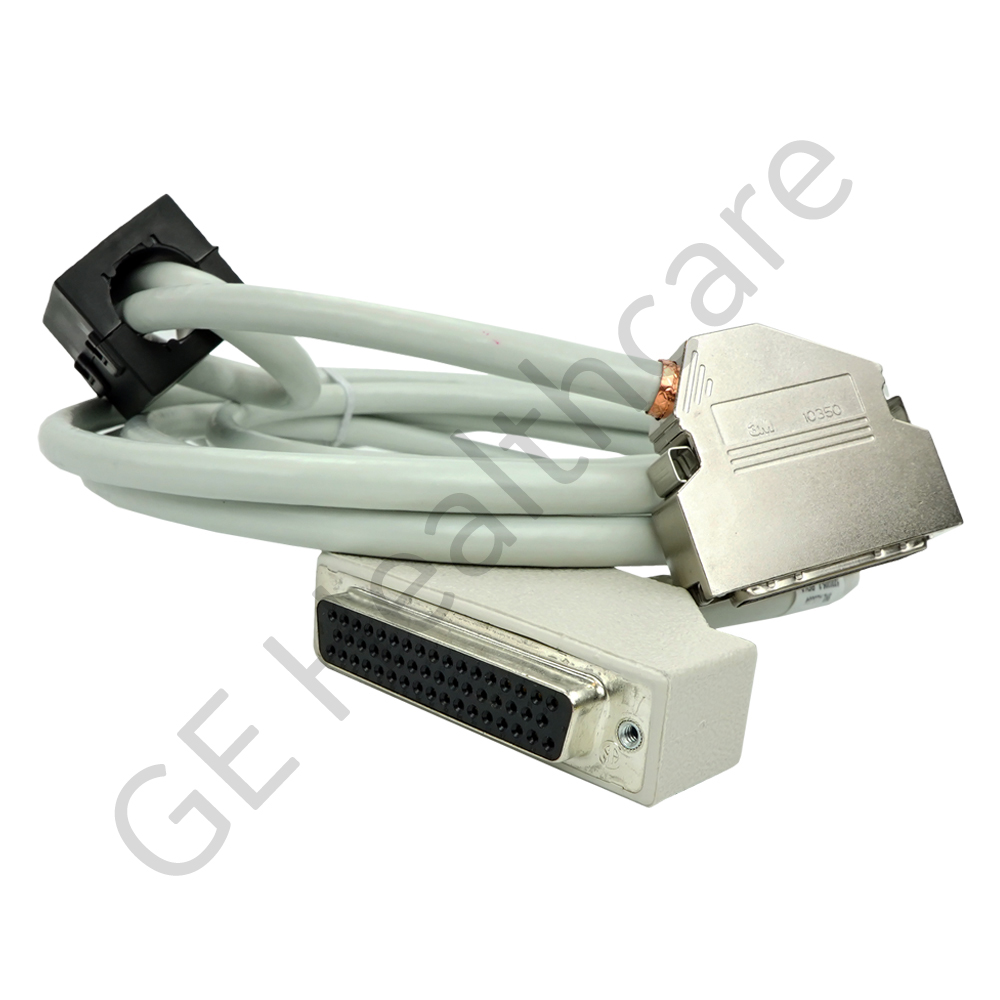

The Cable Assembly is a specially designed cable assembly intended for use in Precision 500D X-Ray systems and other medical equipment as applicable. This 3 meter long cable assembly consists of a 50 pin Sub-D type male connectors with 60 degree exit backshell on one side and a 50 pin Sub-D type female connectors with straight overmold on the other side. The connectors are interconnected by 25 pairs of AWG 28 cable. In addition, the cable assembly has Ferrite Clamp for better EMI Suppression. The cable assembly is designed with quality shielding which provides excellent EMI shielding and lightning protection. The products high quality material helps to offer a reliable operation, efficient functioning and longer life span. The cable assembly is labeled for easy identifications.

Compatible Products

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2293664-4

2293664-4

5183842-2 CABLE, CCD VIDEO, SKL A6A4J1 TO SKL A25J84
