Extended Power Shutdown Assembly 5201018-2U
5201018-2U
Ultrasound
Other Ultrasound
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Extended Power Shutdown (EPS)
  • Provides backup power to Back End Processor (BEP)
  • Compact Size
  • Reliable performance

Other Buying Options


Product Overview

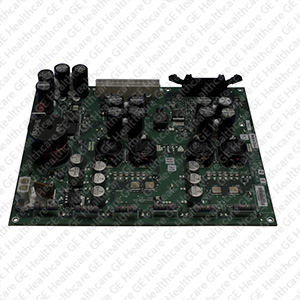

This Extended Power Shutdown (EPS) assembly provides two minutes of power to ensure an orderly shutdown of a system. It uses two replaceable sealed Lead Acid Batteries for backup. The EPS provides enough power capacity for at least five possible alternating current (AC) failures in one day and has an additional 48V and 5V supply for a maximum of two minutes after there is an AC Failure. It receives control signals from the Main Power Supply (MPS) and passes them through to the Back End Processor (BEP). A flame retardant FR4 multi-level board, it comes with a 24 Pin Minifit Connector for interfacing with Main Power Supply / BEP Power Supply, a 14 Pin Latching Connector for interfacing with BEP I/O and a 2 pin connector for battery connections. This back up power assembly is used with Logiq E9 Ultrasound systems. 5201018-2U
