Monoplane Foot Switch

5137930-3
2261468-2 5137930
Interventional Image Guided Systems
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good insulation resistance
  • Low space requirement
  • Good structural design
  • Made of quality material

Product Overview

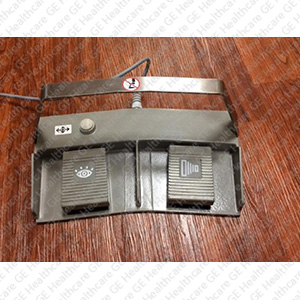

The Monoplane Foot Switch unit consists of a brake release switch, brake release switch label, Fluoro pedal, record pedal, cable with post Everest connector. Post Everest connectors has two ends, one is connected with foot switch and other with the TPD unit. Press the Fluoro to activate the Fluoro Loop Acquire. When Fluoro is started, the images are stored to the image RAM. Depending on the system configuration, a maximum of 128 images (4 secs at 30 frames per second) or a maximum of 256 images (8 secs at 30 frames per second) are stored. By pressing the pedal again this loop will be overwritten if not saved to hard disk. When it is stopped, the acquired loop will automatically begin playback in order to review the loop. The record pedal also has a variant function. This unit is fixed in a main frame by means of fasteners. This part is widely used in XF Precision 500D, XV Innova 3100, XF Legacy, CT LightSpeed 7.X VCT 64-Slice, XR Definium 8000, XV Advantx LCA, XR Discovery XR650, XV Innova 3100, XF Legacy, XV Innova 4100, XV INNOVA IGS 540 and many other machines.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2261468-2 POST EVEREST DUAL FOOTSWITCH
5137930

Post Everest Dual Footswitch
