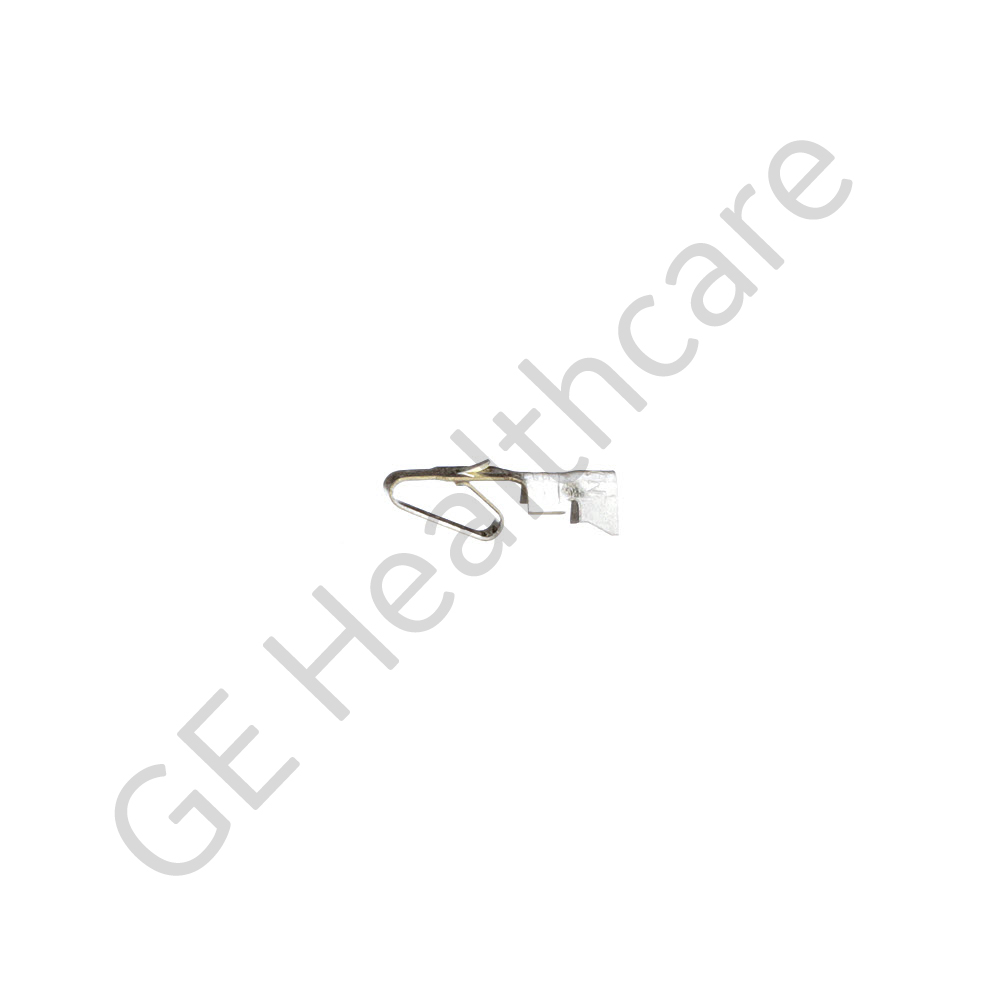

Female Crimp Terminal for Single-Sided Housing

46-220304P2
X-Ray
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Friction lock headers and friction lock ramp housings
  • Ensures secure mating
  • Provides 180° C polarization
  • Improved connectivity

Product Overview

The Crimp Terminals are solderless electrical components that allow to terminate stranded wire by inserting the wire into the terminal to establish quick and easy connection. This terminal is then compressed around the wire, therefore rendering it gas-tight. The Barrel-type crimp connections have an oval shape, whereas in open-barrel crimp connections, the section to be crimped has a V or U shape. A terminal is the point at which a conductor from an electrical component, device or network comes to an end and provides a point of connection to external circuits. A terminal may simply be the end of a wire, or it may be fitted with a connector or fastener. The connection may be temporary, as seen in portable equipment, may require a tool for assembly and removal or may be a permanent electrical joint between two wires or devices. The crimp terminals allow the wires to be easily terminated to screw terminals, quick-disconnect/spade-foot/fast-on type terminals, wire splices and various types of combinations. The particular crimp terminal is manufactured by Molex. There are two kind of plating that is Tin and gold plating, where the form can be Chain strip or Loose strip. This connector system offers many polarization features that ensure correct mating. This connector system also allows loading with optional polarization keys and pegs that ensures one way mating of headers and housings.

Compatible Products

Definium AMX700

Definium AMX700

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

Revolution XRd

Revolution XRd
