GANTRY AND TABLE INSTALLATION LEVELING SCREW FOR BASEPLATE-LESS HSA SYSTEMS
2105871
5405131
Computed Tomography (CT)
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • 1-1/2-12 UNF-2A Threaded Screw
  • Good Mechanical Properties
  • 6x Slotted Drive for Easy Adjustments
  • High Strength Carbon Steel Construction

Product Overview

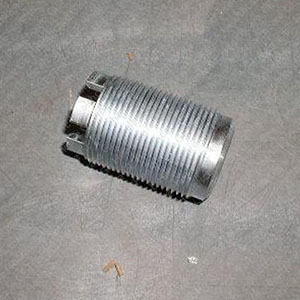

This screw is used to adjust the up and down level of the Gantry and Table assemblies of GE's Computed Tomography systems. For proper functioning and load distribution of an equipment, accurate level needs to be maintained as per the recommeded specifications which can be performed easily using the levelling screws. This 2.415 inch long leveling screw comes with 1-1/2-12 UNF-2A threaded section over 2.120 inch of its length, these threads can be torqued into the tapped section using the slotted drive. The fastening and loosening of the thread affects the level and can be used to nullify the floor inconsistencies. This 1.380 inch diameter leveling screw comes with six slots drive and is made up of strong, rigid and durable leaded carbon steel material. The zinc plating over this screw gives it good corrosion resistance and assures a longer service life. These levelling screws are usually used with Baseplate-Less High Speed Advantage (HSA) systems and is also compatible with GE's Optima 660, Optima 540, Revolution CT, Discovery 750 HD, Discovery ST etc. Computed Tomography systems. This item will be shipped in suitable packaging to give adequate protection during transit.

Compatible Products

Optima 660

Optima 660

VCT

VCT

Lightspeed RT Xtra

Lightspeed RT Xtra

Lightspeed RT

Lightspeed RT

Lightspeed Pro 16

Lightspeed Pro 16

Discovery 750 HD

Discovery 750 HD

Brightspeed Edge

Brightspeed Edge

Lightspeed 16

Lightspeed 16

Lightspeed Ultra

Lightspeed Ultra

HiSpeed Qxi

HiSpeed Qxi

Brightspeed Excel

Brightspeed Excel

Brightspeed Elite

Brightspeed Elite

Lightspeed Plus

Lightspeed Plus

Lightspeed QXi

Lightspeed QXi

Discovery ST

Discovery ST

Discovery STE

Discovery STE

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5405131
  • Gantry and Table Installation Leveling Screw
