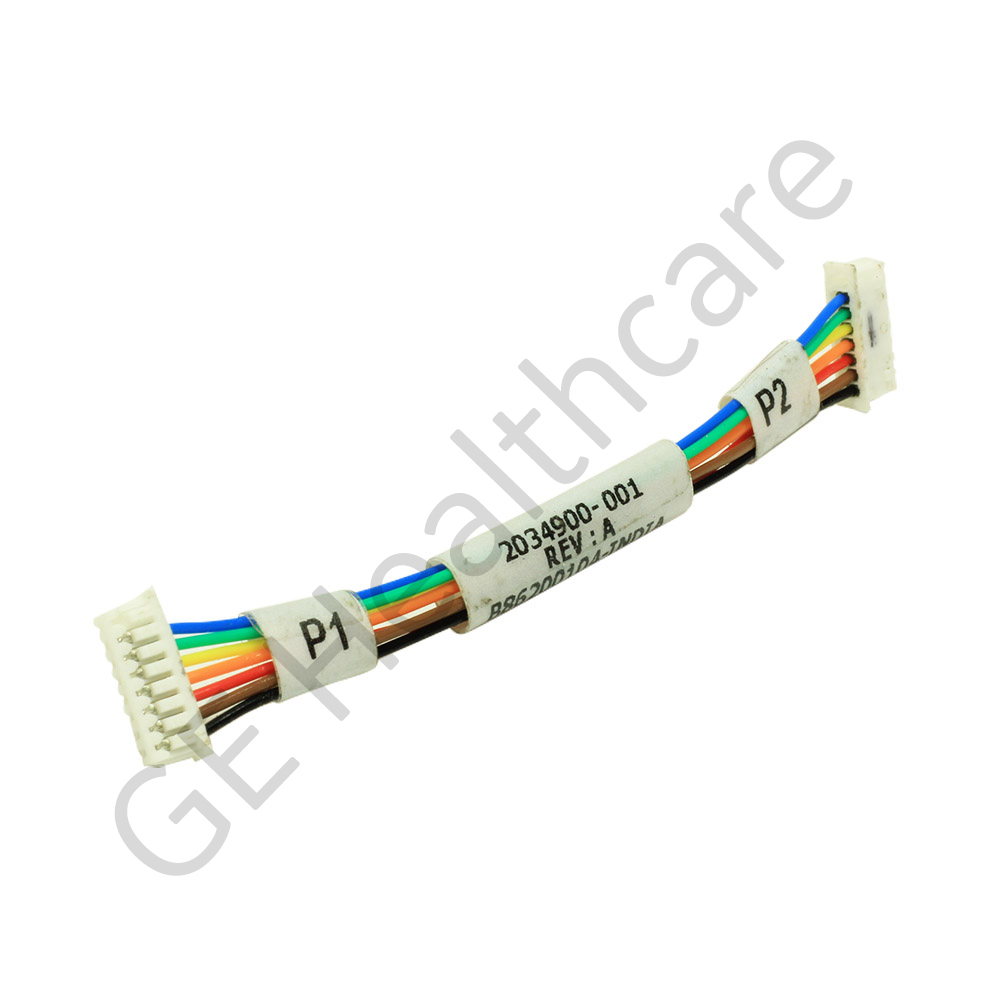

Harness - Inverter Board to Flex Cable
2034900-001
2019106-007 2019106-009 2034909-002
Diagnostic ECG
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Tested to UL and CSA safety standards
  • Excellent electrical properties
  • Easy to handle
  • Flexible and long lasting

Product Overview

The Harness - Inverter Board to Flex Cable is a cable that is part of the back light flex assembly and the LCD backlight power supply in MAC 5000/5500. The purpose of this cable is to supply power to the back light inverter module and to convert the digital intensity control signal. A wire housing has a pitch of 1.25 mm with positions that are arranged in a single row id and used in the assembly. The Housing is made up of a polyester material which makes the housing stronger and provides good insulation, the housing is fire retardant as well. A female socket crimp is also a part of the assembly. It has a current rating of 1A and a voltage rating of 125V. Its wire gauge size is 28 AWG. Hook wires of different colors connect to the crimps. The maximum operating temperature is between the range from -40° C to +85° C. It is tested and certified under UL and CSA standards.

Compatible Products

MAC 5500

MAC 5500

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2019106-007

The Display AUO V1 MAC 5000 AAY/MAC 5500 SCD is an output

2019106-009
2034909-002
